質問 132

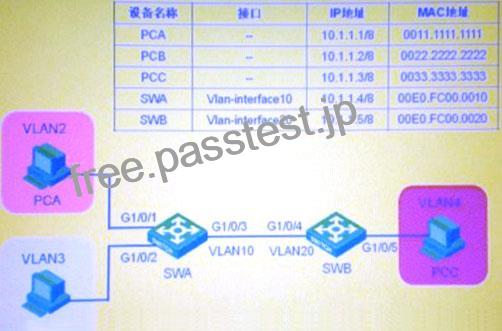

In the switching network shown in the figure, VLAN10 is set as Isolate-user-vlan on switch SWA, VLAN2 and VLAN3 are set as Secondary VLAN of VLAN 10; VLAN4 and VLAN20 are created on switch SWB, and VLAN20 is set as Isolate-user-vlan, and VLAN4 is set as Secondary VLA of VLAN20. After setting the IP addresses of each device as shown in the figure, if the local proxy ARP function is enabled on SWA and SWB, and SWA and SWB are allowed to send ICMP packets, then execute the command tracert 10.1.1.2 on PCA, and PCA will display the jumps required to reach PCB ()
