[2023年更新]200-301リアルな試験問題集で200-301練習テスト [Q74-Q90]

5/5 - (1 vote)

[2023年更新]200-301リアルな試験問題集で200-301練習テスト

200-301問題集でCCNA高確率練習問題集

質問 74

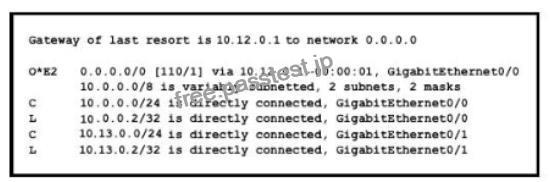

Refer to the exhibit. If configuring a static default route on the router with the ip route 0.0.0.0 0.0.0.0 10.13.0.1
120 command, how does the router respond?

It starts sending traffic without a specific matching entry in the routing table to GigabitEthernet0/1.

It immediately replaces the existing OSPF route in the routing table with the newly configured static route.

It starts load-balancing traffic between the two default routes.

It ignores the new static route until the existing OSPF default route is removed.

Section: IP Connectivity
Explanation
Explanation:
Our new static default route has the Administrative Distance (AD) of 120, which is bigger than the AD of OSPF External route (O*E2) so it will not be pushed into the routing table until the current OSPF External route is removed.
For your information, if you don’t type the AD of 120 (using the command “ip route 0.0.0.0 0.0.0.0 10.13.0.1”) then the new static default route would replace the OSPF default route as the default AD of static route is 1.
You will see such line in the routing table:
S* 0.0.0.0/0 [1/0] via 10.13.0.1

質問 75

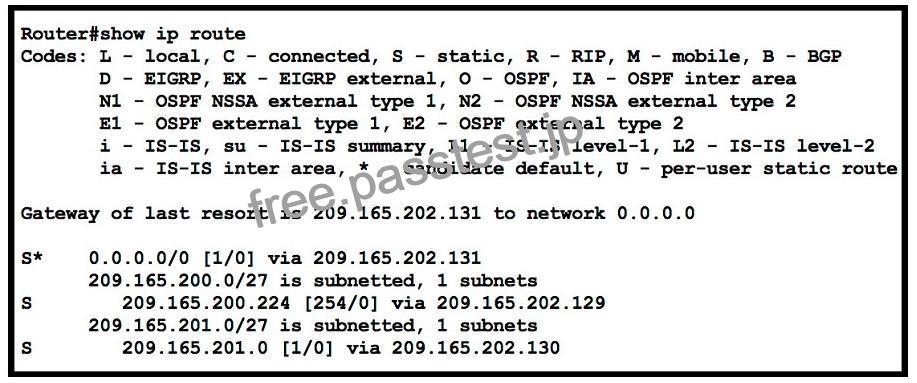

Refer to the exhibit. Which command configures a floating static route to provide a backup to the primary link?

ip route 0.0.0.0 0.0.0.0 209.165.202.131

ip route 209.165.201.0 255.255.255.224 209.165.202.130

ip route 0.0.0.0 0.0.0.0 209.165.200.224

ip route 209.165.200.224 255.255.255.224 209.165.202.129 254

D is the only answer that is a static floating route.

質問 76
Refer to the exhibit.

If configuring a static default route on the router with the ip route 0.0.0.0 0.0.0.0 10.13.0.1 120 command how does the router respond?

It ignores the new static route until the existing OSPF default route is removed

It immediately replaces the existing OSPF route in the routing table with the newly configured static route

It starts load-balancing traffic between the two default routes

It starts sending traffic without a specific matching entry in the routing table to GigabitEthernetO/1

質問 77
Refer to the exhibit.

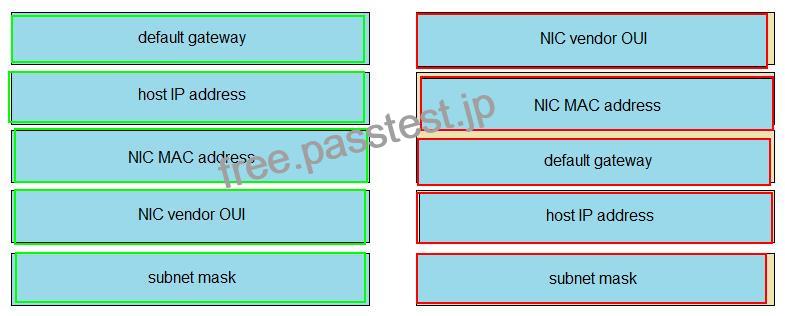

Drag and drop the networking parameters from the left onto the correct values on the right.

質問 78

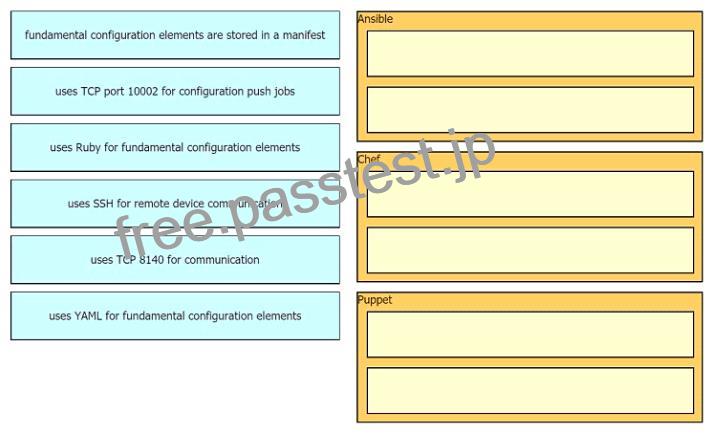

Drag drop the descriptions from the left onto the correct configuration-management technologies on the right.

The focus of Ansible is to be streamlined and fast, and to require no node agent installation.
Thus, Ansible performs all functions over SSH. Ansible is built on Python, in contrast to the Ruby foundation of Puppet and Chef.
TCP port 10002 is the command port. It may be configured in the Chef Push Jobs configuration file .
This port allows Chef Push Jobs clients to communicate with the Chef Push Jobs server.
Puppet is an open-source configuration management solution, which is built with Ruby and offers custom Domain Specific Language (DSL) and Embedded Ruby (ERB) templates to create custom Puppet language files, offering a declarative-paradigm programming approach.
A Puppet piece of code is called a manifest, and is a file with .pp extension.

質問 79
Which command can you enter to route all traffic that is destined for 192.168.0.0/20 to a specific interface?

router (config)#ip route 192.168.0.0 255.255.240.0 GigabitEthernet0/1

router (config)#ip route 0.0.0.0 255.255.255.0 GigabitEthernet0/1

router (config)#ip route 0.0.0.0 0.0.0.0 GigabitEthernet0/1

router (config)#ip route 192.168.0.0 255.255.255.0 GigabitEthernet0/1

質問 80
which two pieces of information can you learn by viewing the routing table? (choose two)

whether access list are blocking incoming routes

the interface on which traffic is send

whether a route was learned via IGP or EGP

whether routes were summarized

whether a route was tagged

質問 81
which effect does the switchport trunk native vlan 10 command have?

It allows traffic from native VLAN 10 on the trunk

It prevents traffic on VLAN 1 from passing on the trunk

It sets VLAN 10 as the native VLAN on the trunk

It configures the interface as a trunk port

質問 82
Which three are valid modes for a switch port used as a VLAN trunk? (choose three)

Desirable

Auto

Blocking

Transparent

Forwarding

質問 83
Which CRUD operation corresponds to the HTTP GET method?

create

read

update

delete

GET: This method retrieves the information identified by the request URI. In the context of the RESTful web services, this method is used to retrieve resources. This is the method used for read operations (the R in CRUD).
https://hub.packtpub.com/crud-operations-rest/

質問 84
Refer to the exhibit.

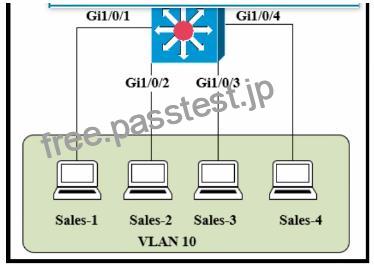

The entire contents of the MAC address table are shown. Sales-4 sends a data frame to Sales-1.

What does the switch do as it receives the frame from Sales-4?

Perform a lookup in the MAC address table and discard the frame due to a missing entry.

Insert the source MAC address and port into the forwarding table and forward the frame to Sales-1.

Map the Layer 2 MAC address to the Layer 3 IP address and forward the frame.

Flood the frame out of all ports except on the port where Sales-1 is connected.

https://www.ciscopress.com/articles/article.asp?p=3089352&seqNum=6

質問 85
Refer to the exhibit.

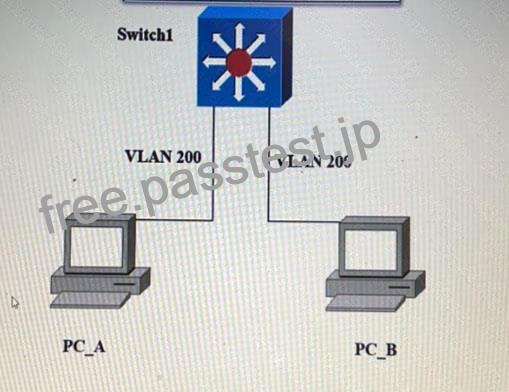

Which outcome is expected when PC_A sends data to PC_B?

The switch rewrites the source and destination MAC addresses with its own.

The source MAC address is changed.

The source and destination MAC addresses remain the same.

The destination MAC address is replaced with ffff.ffff.ffff.

質問 86
What is the primary effect of the spanning-tree portfast command?

It immediately enables the port in the listening state.

It immediately puts the port into the forwarding state when the switch is reloaded.

It enables BPDU messages.

It minimizes spanning-tree convergence time.

Section: Network Access
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst3560/software/release/12-2_55_se/ configuration/guide/3560_scg/swstpopt.html

質問 87
Which type of wireless encryption is used for WPA2 in preshared key mode?

TKIP with RC4

RC4

AES-128

AES-256

Explanation

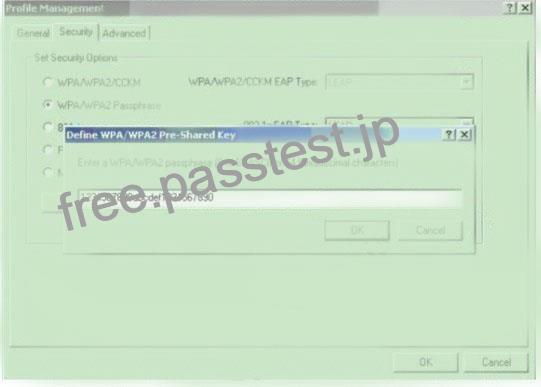

We can see in this picture we have to type 64 hexadecimal characters (256 bit) for the WPA2 passphrase so we can deduce the encryption is AES-256, not AES-128.

https://www.cisco.com/c/en/us/support/docs/wireless-mobility/wireless-lan-wlan/67134-wpa2-config.html

質問 88
Refer to the exhibit.

An engineer configured NAT translations and has verified that the configuration is correct.
Which IP address is the source IP?

10.4.4.4

10.4.4.5

172.23.103.10

172.23.104.4

質問 89

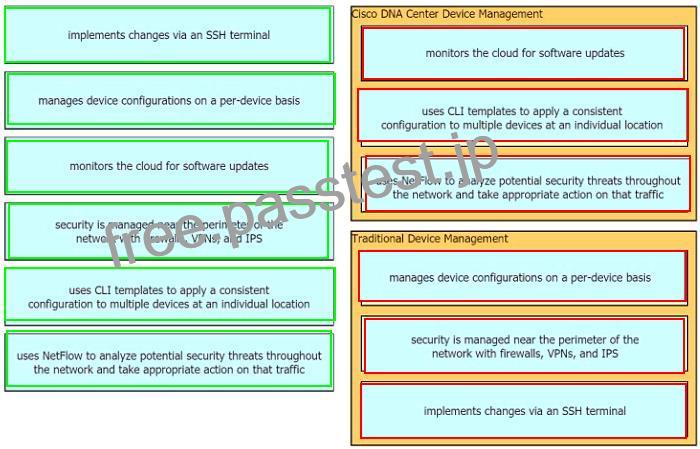

Drag the descriptions of device management from the left onto the types of device management on the right.

質問 90
Refer to the exhibit.

Which password must an engineer use to enter the enable mode?

adminadmin123

default

testing 1234

cisco123

Explanation
If neither the enable password command nor the enable secret command is configured, and if there is a line password configured for the console, the console line password serves as the enable password for all VTY sessions -> The “enable secret” will be used first if available, then “enable password” and line password.

Loading …

Cisco 200-301試験は、Cisco Certified Network Associate（CCNA）認定を取得するための唯一の要件です。この認定は、候補者の基本的なネットワークコンセプト、技術、ベストプラクティスに対する理解と知識を検証するために設計されています。試験は、ネットワークセキュリティ、自動化とプログラマビリティ、ネットワークアクセス、IP接続性、ネットワークの基本などの分野で候補者の能力をテストするように設計されています。
